Wednesday, October 26, 2022

Restore Archived Log into VMware Aria Operations for Logs (formerly known as vRealize Log Insight - vRLI)

As we cannot keep all logs in searchable space in vRLI production system due to performance and slowness issue, it is always recommended to archive logs based on different retention policy. Once the log in being compressed, archived and moved to an archive system (e.g., nfs), the logs are no longer searchable in vRLI.

Let us first see and analyze the log structure how it is being archived and stored. Below is a simple High-Level Diagram (HLD) of log archiving structure in vRealize Log Insight (vRLI). vRLI keeps the logs into a bucket with some bucket index, then compressed and pushed to NFS.

Here is a sample directory location of an archived log bucket.

nfs-dir/2022/10/26/10/c25b0ace-cd26-47c4-ab87-d8f302ddd7c4



Due to operational requirement or regulatory need, it's a time-to-time ask to retrieve some particular old logs from the archive system. In such cases, we need another vRLI instance (other than the production system) where we can be able to import the archive logs. Once imported, we can search necessary data and extract what necessary.


It is just simple two steps to import the logs in vRLI from an archive.

Step 1: copy data.blob files from NFS server to anywhere in new vRLI server.

Step 2:  Run below command to import logs in vRLI:


root@vrli82-test [ /storage/core/import]# /usr/lib/loginsight/application/bin/loginsight repository import 1f6d813e-25d6-4b3e-96b0-9dfaecbf939e/

The operation is in progress and it may take some time.

Added one-shot task for '/storage/core/import/1f6d813e-25d6-4b3e-96b0-9dfaecbf939e' with filter list:'[]' with parser: default-imported




VMware Official Document



Thursday, October 6, 2022

Update VMware Tanzu Kubernetes Cluster (TKC) Version on vSphere Kubernetes

vSphere 7 onwards provides vSphere with Kubernetes (formerly Project Pacific). Natively it supports VMs and containers on vSphere. Tanzu Kubernetes Grid Service (TKGS) helps to run fully compliant and conformant Kubernetes with vSphere. vSphere Pod runs natively on vSphere whereas Tanzu Kubernetes Cluster (TKC) is a managed cluster by the Tanzu Kubernetes Grid Service, with the virtual machine objects deployed inside of a vSphere Namespace.

A rolling update can be initiated to Tanzu Kubernetes Cluster (TKC), including the Kubernetes version, by updating the Tanzu Kubernetes release, the virtual machine class or storage class. In this article, I will be doing version update of Kubernetes cluster on vSphere.

 Let's first inspect the environment: We are having three separate Kubernetes cluster inside vSphere namespace validation-test-1. Below span is taken from vSphere Client UI.


Let's now check the versions and update path of Tanzu Kubernetes Cluster (TKC). To view this, we need to login to the SupervisorControlVM. If you are not sure how to login to SupervisorControlVM, this article will help you.

[ ~ ]# kubectl get tanzukubernetesclusters -A
or
[ ~ ]# kubectl get tkc -A


Let's now check the list of available Tanzu Kubernetes Releases:
[ ~ ]# kubectl get tanzukubernetesreleases
or
[ ~ ]# kubectl get tkr

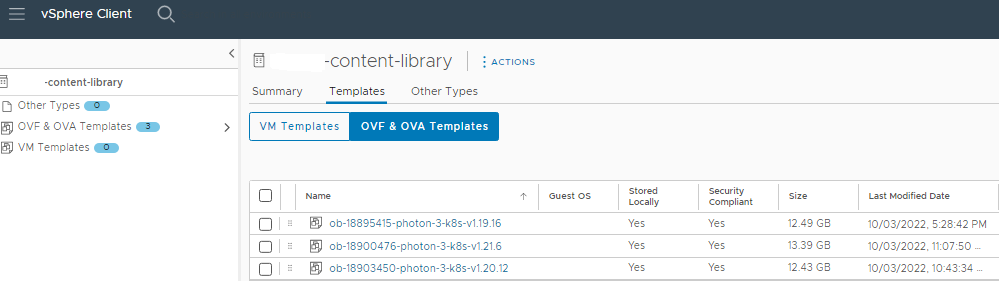

To make the Kubernetes versions available, first we need to download the releases from here. Then from vSphere Client UI, a Content Library needs to be created where we should upload the releases files downloaded from the link. Once the releases are downloaded from VMware repository and uploaded in vSphere Client UI, releases will be available under Content Library section.


To initialize the update, lets edit the Kubernetes cluster manifest file and put the release version details appropriately like below:

[ ~ ]# kubectl edit tanzukubernetesclusters validation-tkgs-cluster -n validation-test-1

Once I have the manifest file in edit mode, first I need to check the API version. API version defines how to put the release names. Check the API reference here. Then in spec section, update the Kubernetes release version accordingly. Lastly, in topology >> tkr >> reference section, update the release version. In latest version, it supports to have different Kubernetes release version in ControlPlaneNode and WorkerNode. For uniformity, I am using the same version details in all three sections.

apiVersion: run.tanzu.vmware.com/v1alpha2
kind: TanzuKubernetesCluster

spec:
  distribution:
    fullVersion: v1.21.6---vmware.1-tkg.1.b3d708a
    version: ""

topology:
    controlPlane:
      replicas: 3
      storageClass: tanzu-policy
      tkr:
        reference:
          name: v1.21.6---vmware.1-tkg.1.b3d708a
      vmClass: best-effort-large
    nodePools:
    - name: workers
      replicas: 2
      storageClass: tanzu-policy
      tkr:
        reference:
          name: v1.21.6---vmware.1-tkg.1.b3d708a
      vmClass: best-effort-large


Now, while monitoring the cluster status, it will be not in ready state and doing a rolling update to all of the ControlPlane nodes and Worker nodes.


A series of actions can also be reviewed from vSphere Client UI


Cluster release version before update

Cluster release version after update


Once update completed in all three clusters



Here is the official documentation link for reference.


Cheers 😎



How to Login to SupervisorControlVM in vSphere Kubernetes

 vSphere 7 onwards provides vSphere with Kubernetes (formerly Project Pacific). Natively it supports VMs and containers on vSphere. Tanzu Kubernetes Grid Service (TKGS) helps to run fully compliant and conformant Kubernetes with vSphere. vSphere Pod runs natively on vSphere whereas Tanzu Kubernetes Cluster (TKC) is a managed cluster by the Tanzu Kubernetes Grid Service, with the virtual machine objects deployed inside of a vSphere Namespace.

For many administrative operations, system or cloud administrator needs to login to SupervisorControlVM to do those tasks. This article describes a step-by-step process to login to SupervisorControlVM and do administrative tasks.


First step is to login to vCenter via SSH. Execute decryptK8Pwd.py script under /usr/lib/vmware-wcp/ directory. This will help us to obtain SupervisorControlVM Virtual IP (VIP) and login credential

Connected to service
    * List APIs: "help api list"
    * List Plugins: "help pi list"
    * Launch BASH: "shell"

Command> shell

Shell access is granted to root

[ ~ ]# cd /usr/lib/vmware-wcp/
[ /usr/lib/vmware-wcp ]# ./decryptK8Pwd.py


Read key from file
Connected to PSQL

Cluster: domain-cxxxx:xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx
IP: 10.10.10.2
PWD: sadfjhsdifudnnxjzxcnAIJDIDJFKASD-=+ASDJASDNksdjfhkcbbcdcbk
------------------------------------------------------------

Now I can login to SupervisorControlVM with above obtained virtual IP and password


[ /usr/lib/vmware-wcp ]# ssh 10.10.10.2

FIPS mode initialized

Password:

Last login: Tue Oct  4 05:35:57 2022 from 10.10.100.102

root@420f007a3156d05baab95084b457eb4c [ ~ ]#


I am successfully able to log in to SupervisorControlVM and do administrative tasks now.

root@420f007a3156d05baab95084b457eb4c [ ~ ]# kubectl get pods -n kube-system

NAME                           READY   STATUS    RESTARTS   AGE

coredns-855c5b4cfd-ftfx9       1/1     Running   0          3d2h

coredns-855c5b4cfd-lfcjf       1/1     Running   0          3d2h

coredns-855c5b4cfd-vzj42       1/1     Running   0          3d2h


Cheers 😎

Monday, March 14, 2022

Ansible playbook to install utility tools in Linux

 Ansible is one of the most popular open-source software provisioning, configuration management and application-deployment tool enabling infrastructure as code. Ansible is mainly used as a DevOps tool and can perform a lot of tasks that otherwise are time-consuming, complex, repetitive, and can make a lot of errors or issues.

Let's write a simple ansible playbook which enables us to install few of the utility tools which are required by a System Administrator to troubleshoot a system. Let's say we have to install this tools in 10, 100 or even 1000 servers. With the help of this tiny powerful playbook anyone can install those required tools in a minute to thousand servers.

Assuming that, we have an ansible controller server and we have passwordless access to destination servers by doing ssh-copy-id. Additionally, we have an inventory file e.g. inventory.ini where we listed all destination servers IP or hostname  in a group like below:






# vi inventory.ini
[blablabla]
10.10.10.20
10.10.10.21
10.10.10.22
host1.abc.com
host2.abc.com

[db-nodes]
10.10.10.50
10.10.10.51

ssh-copy-id installs an SSH key on a server as an authorized key. Its purpose is to provision access without requiring a password for each login. This facilitates automated, passwordless logins and single sign-on using the SSH protocol.

Here is the playbook named required-packages.yaml

---
- hosts: blablabla
  tasks:
  - name : Installing net-tools service
    yum :
      name : net-tools
      state : present
  - name : Installing telnet service
    yum :
      name : telnet
      state : present
  - name : Installing iostat service
    yum :
      name : sysstat
      state : present
  - name : Installing dstat service
    yum :
      name : dstat
      state : present
  - name : Installing curl service
    yum :
      name : curl
      state : present
---

Now from ansible controller, execute below command to invoke the playbook to apply to destination server group mentioned in inventory file e.g. inventory.ini

[root@ansible-controller ~]# ansible-playbook -i inventory.ini required-packages.yaml


voilà :-)


I am thankful to Tanzeeb thus dedicate this post for him.

Friday, March 11, 2022

Retrieve Admin Credential of Embedded Harbor Registry on Supervisor Cluster - vSphere with Tanzu

Below are few steps to retrieve username and credential of embedded harbor registry on supervisor cluster - vSphere with Tanzu


Step-1: Login to vCenter via SSH. Execute decryptK8Pwd.py script under /usr/lib/vmware-wcp/ directory. This will help us to obtain supervisor control VM VIP and login credential

Connected to service
    * List APIs: "help api list"
    * List Plugins: "help pi list"
    * Launch BASH: "shell"

Command> shell

Shell access is granted to root

[ ~ ]# cd /usr/lib/vmware-wcp/
[ /usr/lib/vmware-wcp ]# ./decryptK8Pwd.py
Read key from file
Connected to PSQL

Cluster: domain-cxxxx:xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx
IP: 10.10.10.2
PWD: sadfjhsdifudnnxjzxcnAIJDIDJFKASD-=+ASDJASDNksdjfhkcbbcdcbk
------------------------------------------------------------

Step-2: Login to supervisor control VM with above obtained VIP and password

[ /usr/lib/vmware-wcp ]# ssh 10.10.10.2
Password:

Step-3: Retrieve the namespace, associated pods and secrets related to Harbor registry

Retrieve the namespace:
[ ~ ]# kubectl get namespace | grep -i registry
vmware-system-registry                      Active   100d
vmware-system-registry-xxxxxxxx             Active   100d


Step-4: Retrieve the secret and associated properties related to harbor registry

Retrieve the secrets:
[ ~ ]# kubectl get secrets -n vmware-system-registry-xxxxxxxx
NAME                                  TYPE                                 DATA   AGE
default-token-ghcbt                   kubernetes.io/service-account-token  3      100d
harbor-xxxxxxxx-controller-registry   Opaque                                3      100d
harbor-xxxxxxxx-harbor-core           Opaque                                6      100d
harbor-xxxxxxxx-harbor-database       Opaque                                1      100d
harbor-xxxxxxxx-harbor-jobservice     Opaque                                1      100d
harbor-xxxxxxxx-harbor-registry       Opaque                                2      100d
harbor-xxxxxxxx-ssl                   Opaque                                3      100d
sh.helm.release.v1.harbor-xxxxxxxx.v1 helm.sh/release.v1                    1      100d


Check the secret and its properties:

[ ~ ]# kubectl describe secrets harbor-xxxxxxxx-controller-registry -n vmware-system-registry-xxxxxxxx
Name:         harbor-xxxxxxxx-controller-registry
Namespace:    vmware-system-registry-xxxxxxxx
Labels:       <none>
Annotations:  <none>
Type:  Opaque
Data
====
harborAdminPassword:     24 bytes
harborAdminUsername:     8 bytes
harborPostgresPassword:  24 bytes


Step-5: Retrieve the username by using the properties (harborAdminUsername) obtained from above secret. String values are base64 encoded, thus we need to decode this as well.

[ ~ ]# kubectl get secrets harbor-xxxxxxxx-controller-registry -nvmware-system-registry-xxxxxxxx --template={{.data.harborAdminUsername}} | base64 -d | base64 -d
admin


Step-6: Retrieve the password by using the properties (harborAdminPassword) obtained from above secret. String values are base64 encoded, thus we need to decode this as well.

[ ~ ]# kubectl get secrets harbor-xxxxxxxx-controller-registry -nvmware-system-registry-xxxxxxxx --template={{.data.harborAdminPassword}} | base64 -d | base64 -d
da7SMxx&v#ZZR@w2tPP


Step-7: Check login using username and password obtained from Step-5 and Step-6



voilà :-)


Thursday, March 25, 2021

Send Custom Application Log to Central Syslog/SIEM Server (e.g. graylog/QRadar)

Let's say, our application which is running on a Windows 2016 server which is generating customs logs and we want to send those logs to our central syslog or SIEM server. For log collection and forwarding we will use NXLog Community Edition. NXLog Community Edition is an open source log collection tool available at no cost.

Let's assume our syslog server (e.g. graylog or Qradar) is installed and configured. We will just collect and forward logs from a Windows Server to destination server. To achieve that, let's follow below steps:


1) Install NXLog Community Edition.

2) Depending on this installation location, update the configuration file nxlog.conf. In my case, the file location is C:\Program Files (x86)\nxlog\conf

3) Let's say we wanna forward access and error logs. Add below configuration in the above mentioned configuration file. Beforehand, make sure the input methods are properly configured and service is running on respective server. In case of graylog, GELF input method is configured and running (Picture-1)


# For sending logs to graylog, we'll use xm_gelf module. Add below in configuration file.
# Assume graylog server IP is 10.10.100.100 and QRadar server IP is 10.10.100.200.
# Application is generating custom logs at a shared folder under directory \\10.20.30.40\LOG\WebApp\

<Extension _gelf>
    Module      xm_gelf
</Extension>

# send logs to graylog

<Input application_accesslog_graylog>
Module im_file
        File '\\10.20.30.40\LOG\WebApp\Information\\accesslog_*'
#File 'C:\Program Files (x86)\nxlog\data\\*.log'
PollInterval 1
SavePos True
ReadFromLast True
Recursive False
RenameCheck False
        Exec $FileName = file_name();
</Input>

<Input application_errorlog_graylog>
Module im_file
File '\\10.20.30.40\LOG\WebApp\Error\\errorlog_*'
#File 'C:\Program Files (x86)\nxlog\data\\*.log'
PollInterval 1
SavePos True
ReadFromLast True
Recursive False
RenameCheck False
Exec $FileName = file_name();
</Input>

<Output gelf>
Module om_tcp
Host 10.10.100.100
Port 12201
OutputType  GELF_TCP
</Output>

<Route graylog>
Path application_accesslog_graylog , application_errorlog_graylog => gelf
</Route>

# send logs to QRadar

<Input application_accesslog_qradar>
Module im_file
        File '\\10.20.30.40\LOG\WebApp\Information\\accesslog_*'
#File 'C:\Program Files (x86)\nxlog\data\\*.log'
ReadFromLast False
Exec parse_syslog();
Exec log_info("Input Event: " + $raw_event);
</Input>

<Input application_errorlog_qradar>
Module im_file
        File '\\10.20.30.40\LOG\WebApp\Error\\errorlog_*'
#File 'C:\Program Files (x86)\nxlog\data\\*.log'
ReadFromLast False
Exec parse_syslog();
Exec log_info("Input Event: " + $raw_event);
</Input>

<Output event-out-qradar>
Module om_tcp
Host 10.10.100.200
Port 514
</Output>

<Route qradar>
    Path application_accesslog_qradar, application_errorlog_qradar  => event-out-qradar
</Route>

############################
#End of configuration file
############################

4) Save the configuration file and restart nxlog service from services.msc


After login to respective portal, verify the results.


Picture-2: graplog



Picture-3: QRadar



Cheers :-)



Sunday, March 21, 2021

Create Logical Volume Manager (LVM) in Linux

In Linux, Logical Volume Manager (LVM) is a device mapper framework that provides logical volume management for the Linux kernel. Most modern Linux distributions are LVM-aware to the point of being able to have their root file systems on a logical volume. Heinz Mauelshagen wrote the original LVM code in 1998 (Source: wiki)

Advantages of LVM: (Source: wiki)

  • Volume groups (VGs) can be resized online by absorbing new physical volumes (PVs) or ejecting existing ones.
  • Logical volumes (LVs) can be resized online by concatenating extents onto them or truncating extents from them.
  • LVs can be moved between PVs.
  • Creation of read-only snapshots of logical volumes (LVM1), leveraging a copy on write (CoW) feature, or read/write snapshots (LVM2)
  • VGs can be split or merged in situ as long as no LVs span the split. This can be useful when migrating whole LVs to or from offline storage.
  • LVM objects can be tagged for administrative convenience.
  • VGs and LVs can be made active as the underlying devices become available through use of the lvmetad daemon
LVM Elements: (Source: wiki)


Physical volumes (pv) are regular storage devices. LVM writes a header to the device to allocate it for management.

Volume Groups (vg) is the combination of physical volumes into storage pools known as volume groups.

Logical Volumes (lv) is the sliced portion of volume group

Create LVM:
Usually fdisk is used for drives that are smaller than 2TB and either parted or gdisk is used for disks that are lasger than 2TB. Here is a very good article that covers the differences, titled: The Differences Between MBR and GPT.

Find out the harddisk:
server1:~# fdisk -l

As there is no partitions yet on /dev/sdb, let's create a partition on it and assume the harddisk is larger than 2TB, we will use parted tool

parted /dev/sdb
(parted) mklabel gpt
(parted) unit TB
(parted) print
(parted) mkpart
Partition type?  primary/extended? primary
File system type?  [ext2]? xfs # other known filesystems are ext3, ext4
Start? 0
End? 11TB
(parted) print # print newly created disk
(parted) quit

Now check the changes again:
server1:~# fdisk -l

Now create PV, VG and LV. Once this is done, format the partition in desired partition type and mount the volume in under a mount point. For persistent, update fstab file accordingly.

server1:~# pvcreate /dev/sdb1        # create physical volume
server1:~# pvs                         # view physical volume
server1:~# vgcreate vg_data /dev/sdb1  # create volume group
server1:~# vgs                         # view volume group
server1:~# vgdisplay -v vg_data        # display volume group details with FREE PE (Physical Extent) number
server1:~# lvcreate -l +2621437 -n lv_data vg_data    # create logical volume group with FREE Physical Entent (PE) number
server1:~# vgdisplay -v vg_data        # view the volume group
server1:~# lvs                         # view the logical volume
server1:~# mkfs.ext4 /dev/vg_data/lv_data # format partition with ext4
OR
server1:~# mkfs.xfs /dev/vg_data/lv_data # format partition with xfs
server1:~# mkdir /data     # create a mount point
server1:~# mount /dev/vg_data/lv_data /data/ # mount newly created partition

server1:~# df -Th

server1:~# vim /etc/fstab

/dev/vg_data/lv_data /data/ default 0 0 # add fstab entry for a persistent automount after reboot, first 0 option is for skip backup and second 0 option is for no filesystem check (fsck) at boot time

Let's assume the harddisk /dev/sdb is < 2TB. So for this, we will use fdisk instead of parted

server1:~# fdisk -l
server1:~# fdisk /dev/sdb
server1:~# fdisk> m # for help
fdisk> n # create new partition
fdisk> Primary/ Extended? Primary
fdisk> Partition ID: 1
fdisk> Start: [enter for default]
fdisk> End: [enter for default]
fdisk> p       # print newly created partition
fdisk> t                              # change the partition ID
fdisk> L [Print all types]       # change the partition ID
fdisk> 8e           # 8e is the partition code for Linux LVM
fdisk> w       # write and exit
server1:~# fdisk -l

Repeat the same process again starting from creation of PV, VG and LV. Format the partition and mount as above process.

Cheers :-)

Restore Archived Log into VMware Aria Operations for Logs (formerly known as vRealize Log Insight - vRLI)

As we cannot keep all logs in searchable space in vRLI production system due to performance and slowness issue, it is always recommended to ...
